DP-S2V

동도 센서



DP-S2V

  • Measuring range : ±1mm
  • Repeatability : 0.15um
  • Linearity error(±0.5mm) : 0.2％
  • Cable length : 2.2m (Option : 3/5/10m)



Plunger movement by
Springpush
Stroke range
2.8㎜
Measuring range
±1㎜
Repeatability
0.15㎛
Linearity error(±0.5㎜)
0.2%
Air pressure(Force ±30%)
-
Measuring force
48g
Cable length
2.2m
External diameter
Ø8
Mass (except cable)
Approx 18g
Operating temp.
0~40℃

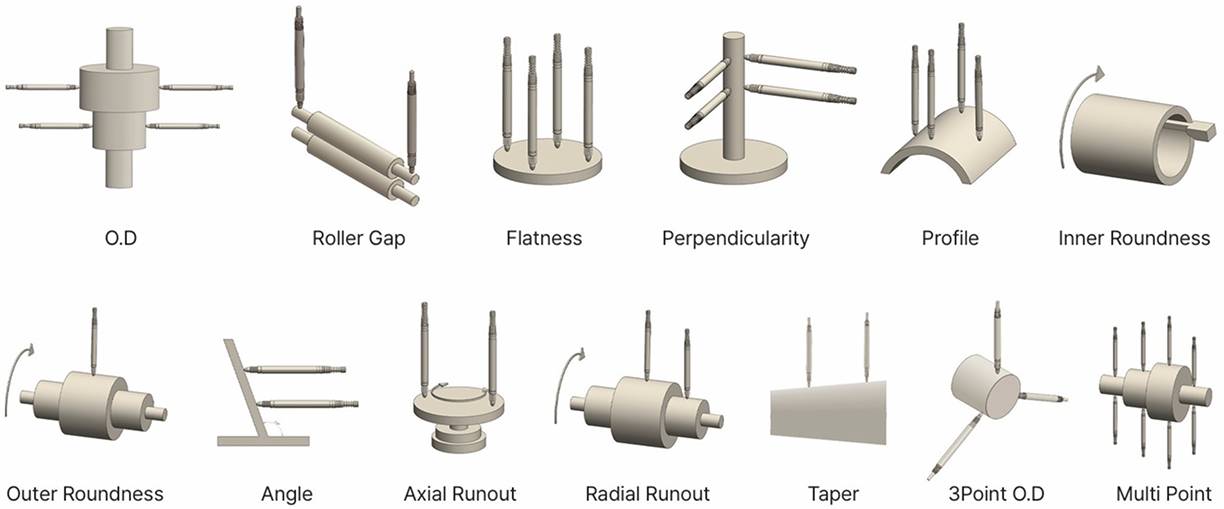

Application



DP-S2V, DP-S2V(2M), DP-S2V(3M), DP-S2V(5M), DP-S2V(10M)



DP-S2VA DP-S2
