HEXACON (헥사콘) 내,외경 보어게이지



  • High measuring accuracy
  • Highly repeatable
  • Long wear life
  • For hand gauge
  • Automatic measurement


Specifications

ModelPMK-NO-02,03PMK-NO-03-3PPMK-XK-02,03PMK-SL 02,03
TypeStandardBlind
Point2point(180°)3point(120°)2point((180°) / 3point(120°) :Oninquiry
SizeSize Ø 6 ~ Ø 280
Size Ø 15 ~ Ø 110
Size Ø 6 ~ Ø 280
Size Ø 10 ~ Ø 100
Standard
measuring range
0.2mm (0.15mm for Ø ≤ 6~20 mm)
ThreadM10 x 1
Exception M6 x 0.75
(Size Ø 6 ~ Ø 20)
M10 x 1M10 x 1
Exception M6 x 0.75
(Size Ø 10 ~ Ø 20)
H (from the bottom)H : 5 (Size Ø 6 ~ Ø 20)
H : 6 (Size Ø 15 ~ Ø 50)
H : 7.5 (Size Ø 50 ~ Ø 100)
H : 10 (Size Ø 100 ~ Ø 280)
H : 6 (Size Ø 15 ~ Ø 50)
H : 7.5 (Size Ø 50 ~ Ø 110)
H : 1.6 (Size Ø 6 ~ Ø 20)
H : 2.5 (Size Ø 15 ~ Ø 280)
H : 0.6 (Size Ø 10 ~ Ø 20)
H : 1.2 (Size Ø 15 ~ Ø 100)

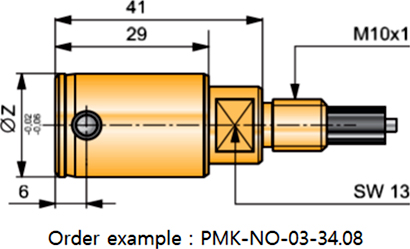

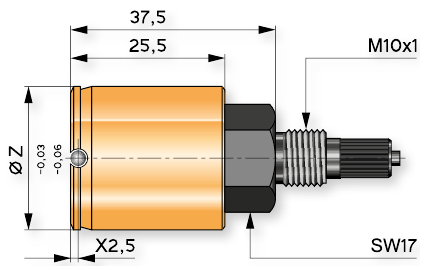

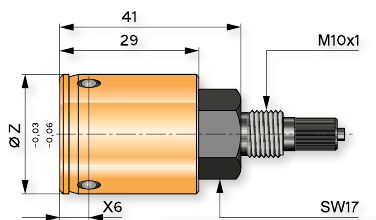

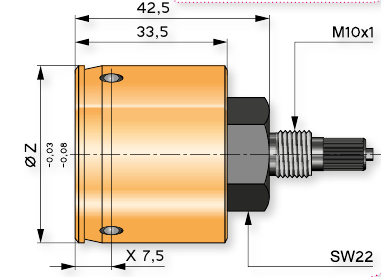

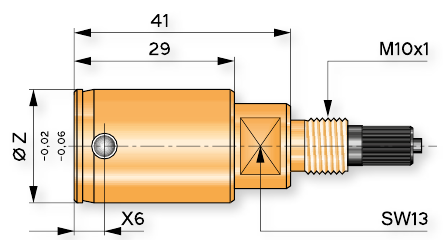

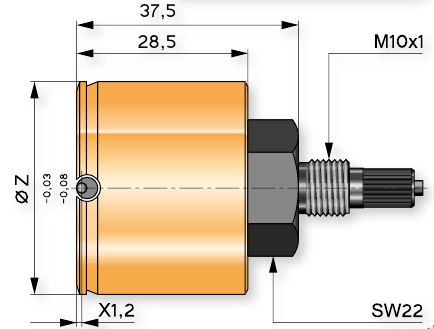

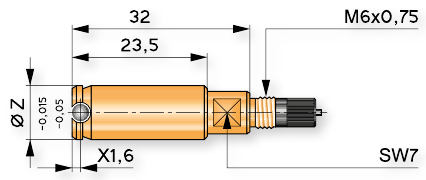

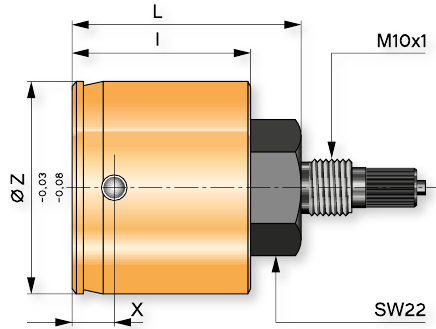

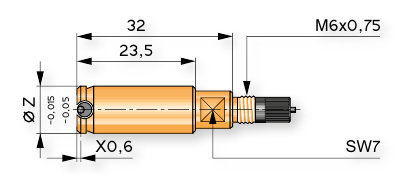

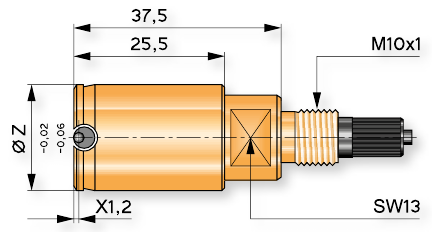

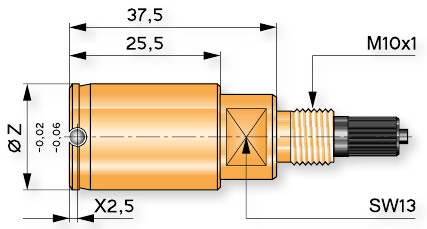

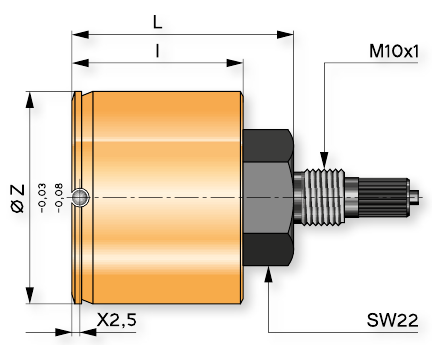

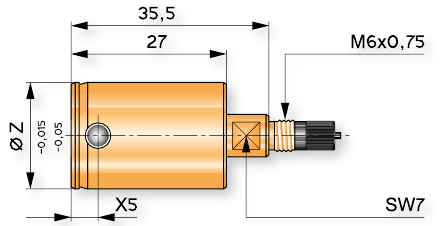

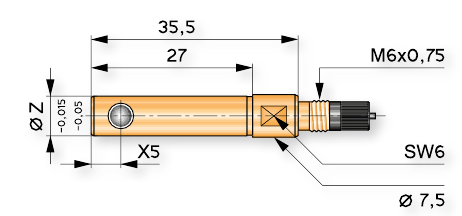

Dimensions                                                                                Applications
