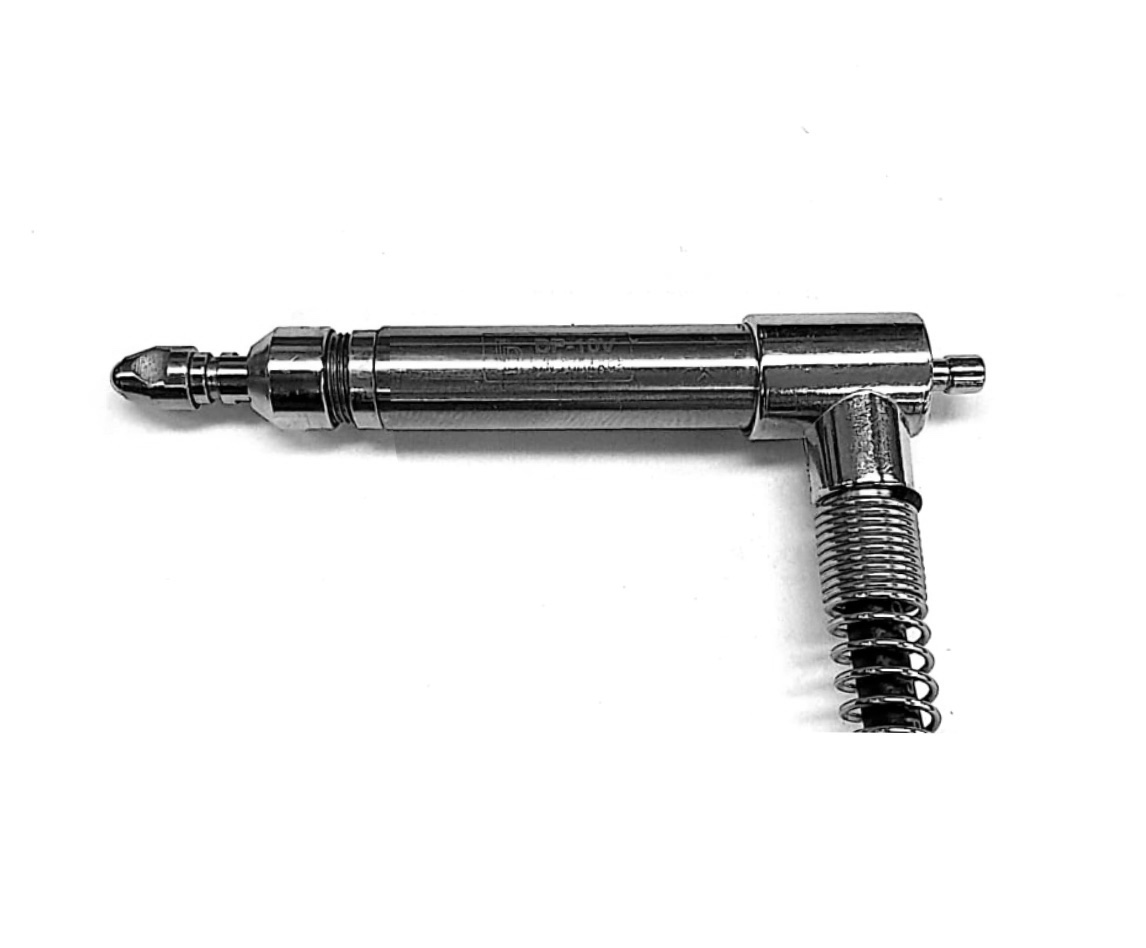

DP-S2VA

동도테크 제품(프로브센서, 측정기, 악세서리)



DP-S2VA

  • Measuring range : ±1mm
  • Repeatability : 0.15um
  • Linearity error(±0.5mm) : 0.2％
  • Cable length : 2.2m (Option : 3/5/10m)



Plunger movement by
Springpush
Stroke range
2.8㎜
Measuring range
±1㎜
Repeatability
0.15㎛
Linearity error(±0.5㎜)
0.2%
Air pressure(Force ±30%)
0.5~1.0 bar
Measuring force
-
Cable length
2.2m
External diameter
Ø8
Mass (except cable)
Approx 11g
Operating temp.
0~40℃

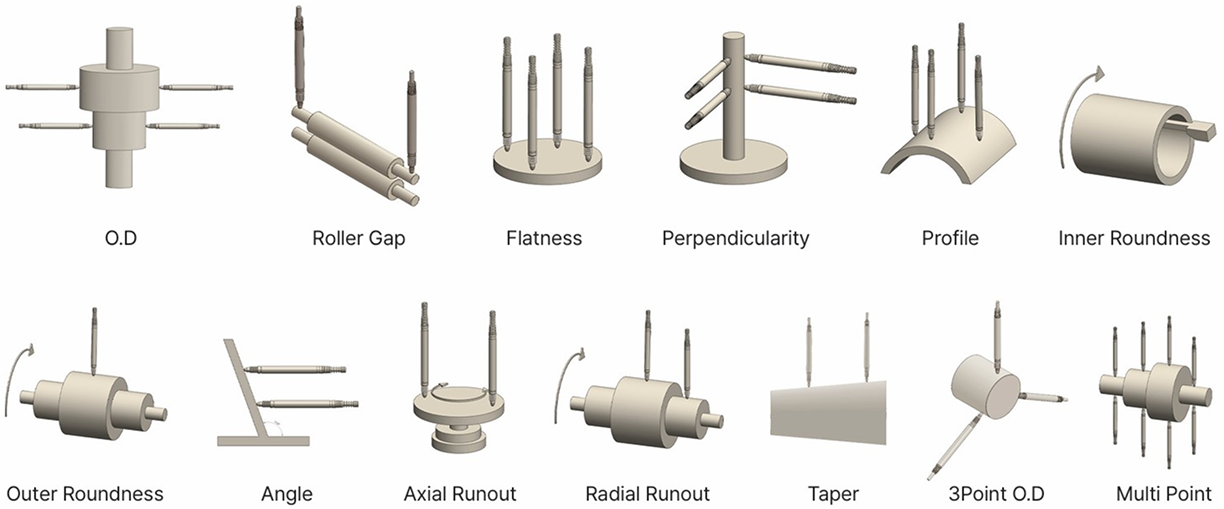

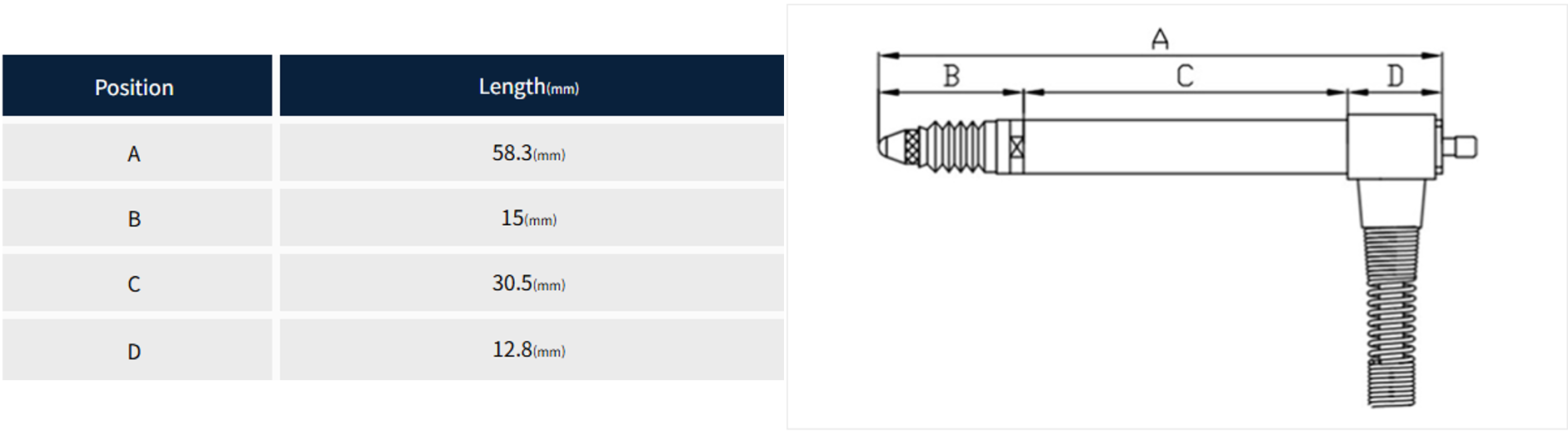

71fe2b8470e24.pngApplication




DP-S2VA, DP-S2VA(2M), DP-S2VA(3M), DP-S2VA(5M), DP-S2VA(10M)
