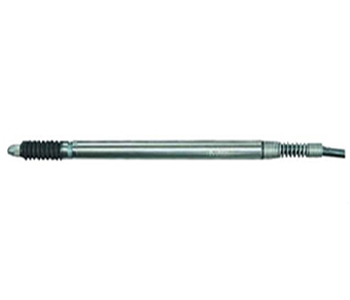

DP-10

Measuring range : ±5mm
Repeatability : 0.4um
Linearity error(±3mm) : 0.3％
Cable length : 3m (Option : 5/10m)

Plunger movement by	Springpush
Stroke range	10.5㎜
Measuring range	±5㎜
Repeatability	0.4㎛
Linearity error(±0.5㎜)	0.3%
Air pressure(Force ±30%)	-
Measuring force	80g
Cable length	3m
External diameter	Ø8
Mass (except cable)	Approx 20g
Operating temp.	0~40℃

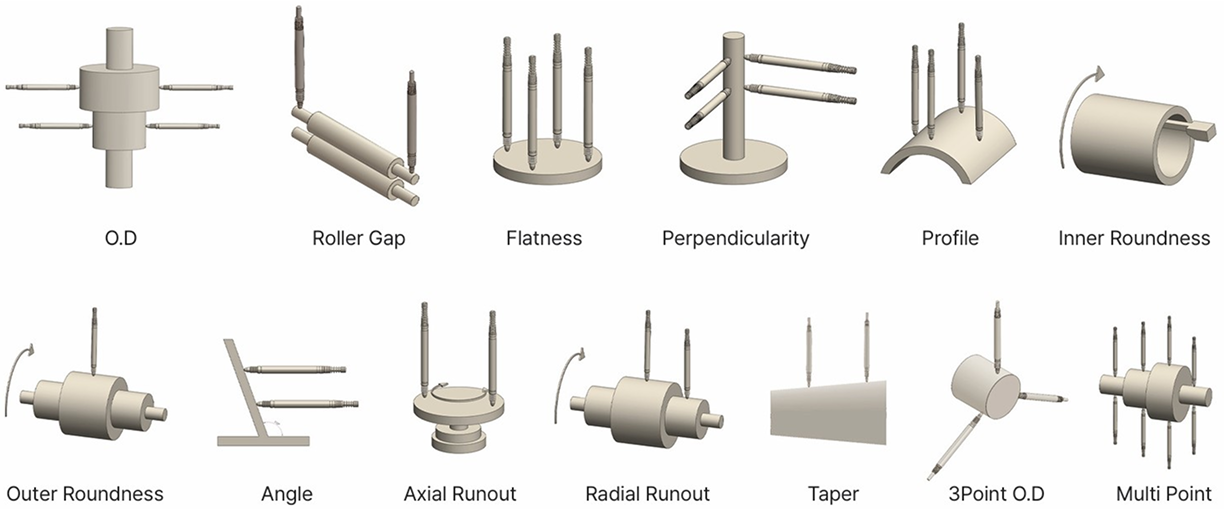

Application

DP-10, DP-10(3M), DP-10(5M), DP-10(10M)

DP-S4VA DP-10V
