DP-10VA

동도테크 제품(프로브센서, 측정기, 악세서리)





DP-10VA

  • Measuring range : ±5mm
  • Repeatability : 0.4um
  • Linearity error(±3mm) : 0.3％
  • Cable length : 3m (Option : 5/10m)


Plunger movement by
Springpush
Stroke range
10.45㎜
Measuring range
±5㎜
Repeatability
0.4㎛
Linearity error(±0.5㎜)
0.3%
Air pressure(Force ±30%)
0.5~1.0 bar
Measuring force
-
Cable length
3m

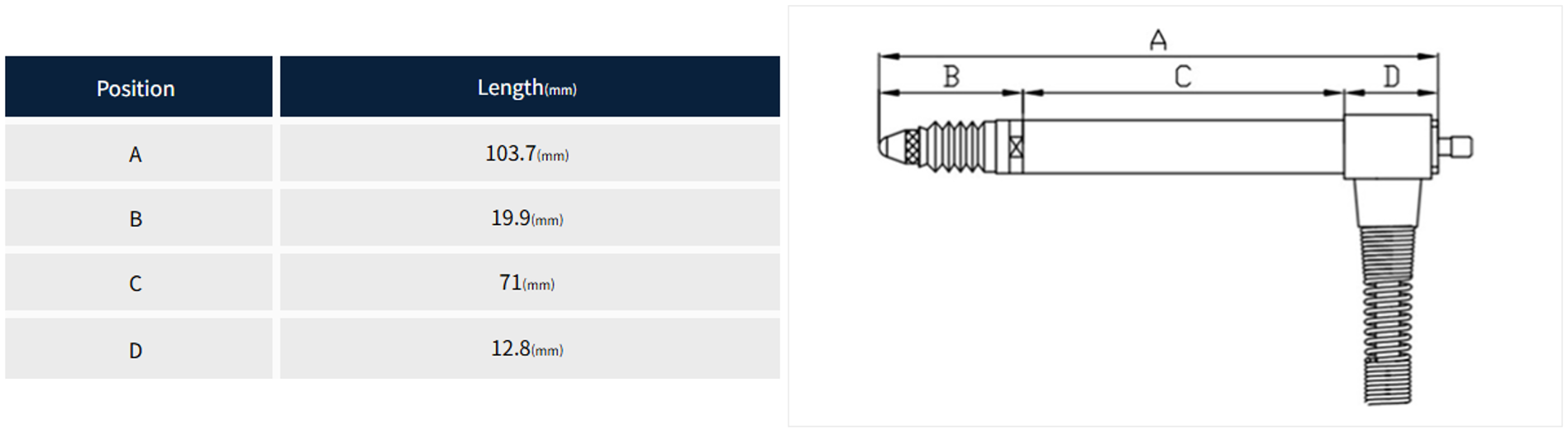

External diameter
Ø8
Mass (except cable)
Approx 18g
Operating temp.
0~40℃

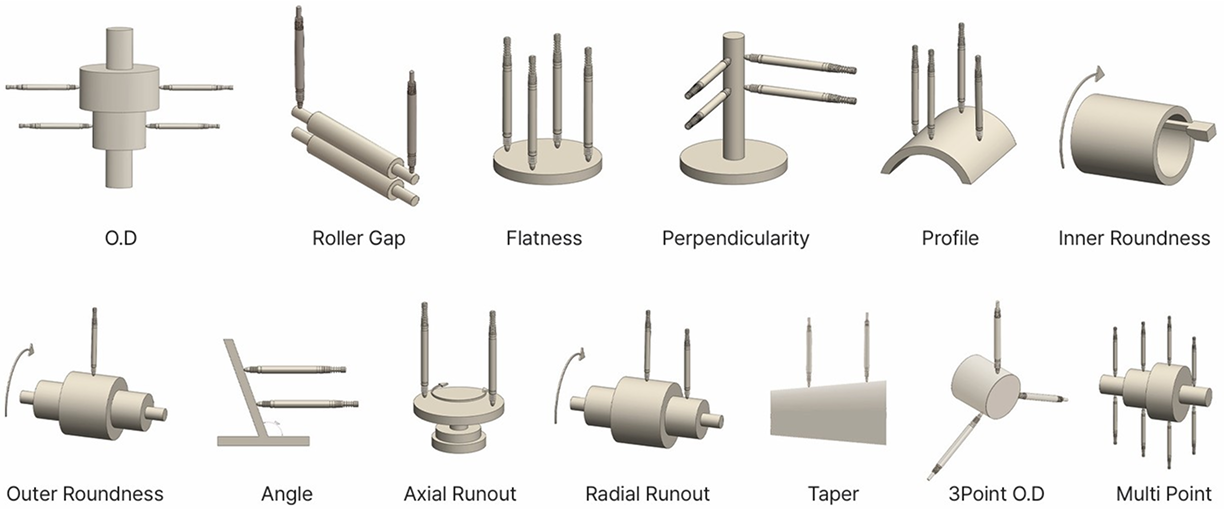

eba5dd4433852.pngApplication



DP-10VA, DP-10VA(3M), DP-10VA(5M), DP-10VA(10M)



DP-10V DP-15
