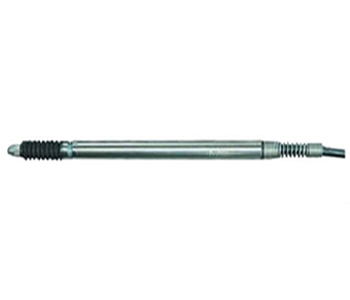

DP-15

Measuring range : ±7.5mm
Repeatability : 0.5um
Linearity error(±5mm) : 0.3％
Cable length : 3m (Option : 5/10m)

Plunger movement by	Springpush
Stroke range	15.5㎜
Measuring range	±7.5㎜
Repeatability	0.5㎛
Linearity error(±0.5㎜)	0.3%
Air pressure(Force ±30%)	-
Measuring force	80g
Cable length	3m
External diameter	Ø8
Mass (except cable)	Approx 25g
Operating temp.	0~40℃

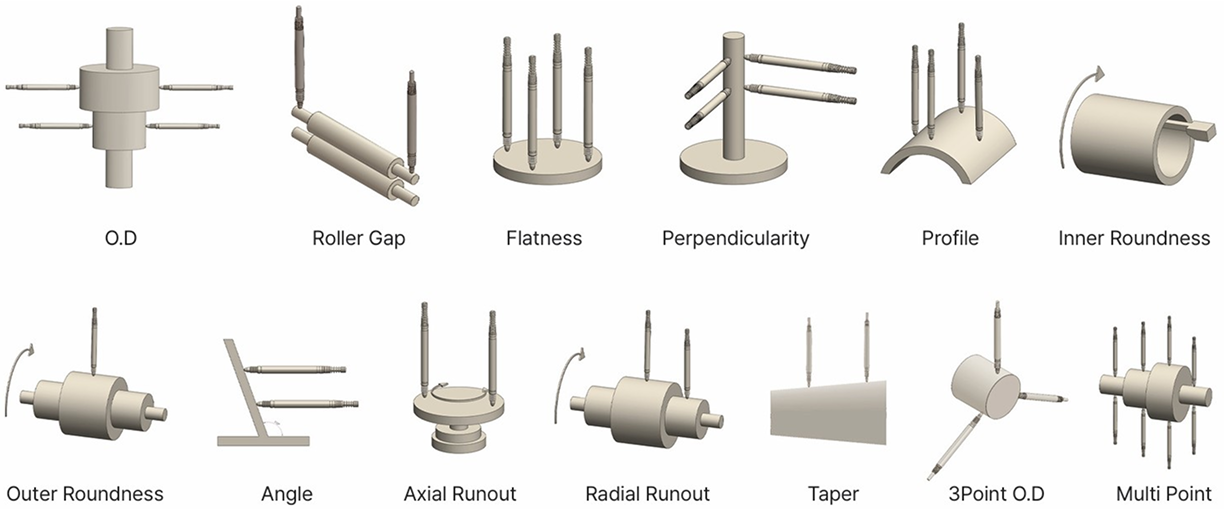

Application

DP-15, DP-15(3M), DP-15(5M), DP-15(10M) , D

P15 , DP15(3M) , DP15(5M) , DP15(10M)
